A370
Solenoid valve 3 way normally closed in stainless steel AISI 316
direct acting poppet type.
With explosion proof coil certified for hazardous area:
ATEX II 2GDEx d IIC T6 o T5 o T4 Gb
Ex tb IIIC T80°C o T95°C o T130°C Db IP66
Tamb -40°C ÷ +35°C(T6) o +50°C(T5) o +60°C(T4)
(other certifications e.g.. EAC, INMETRO, CCOE etc. on request)

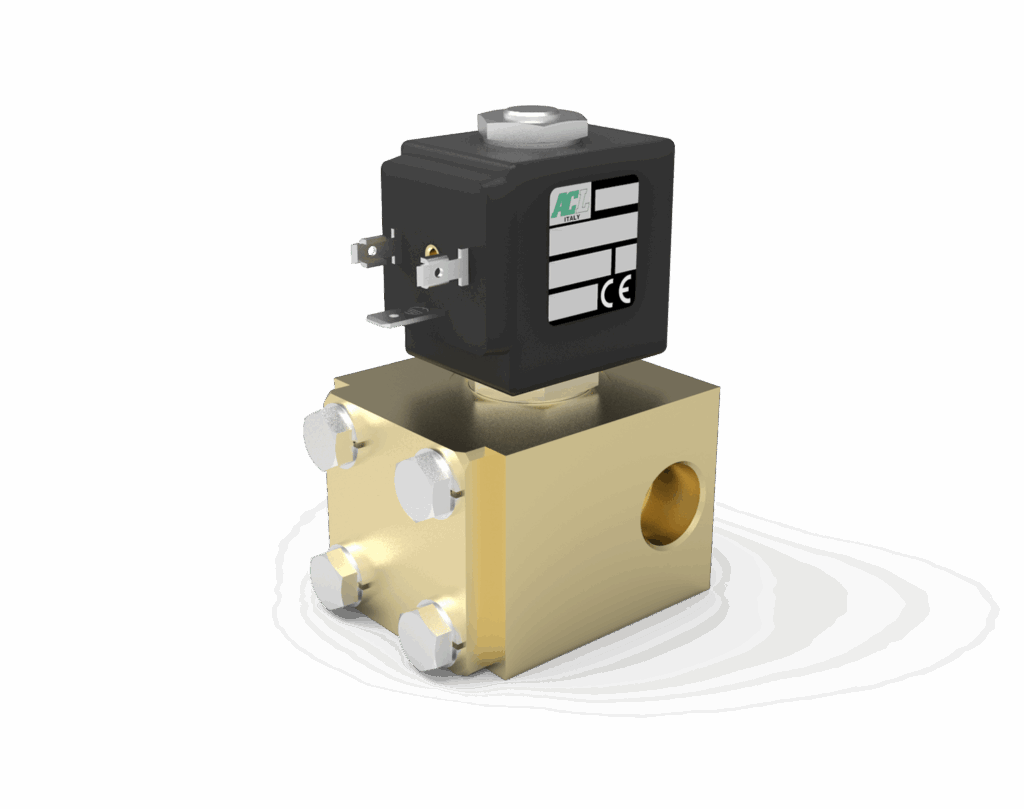

123
Solenoid valve 2 way normally closed with servo-assisted
piston suitable for air and water.
Its requested a minimum differential pressure of 0.7 bar.

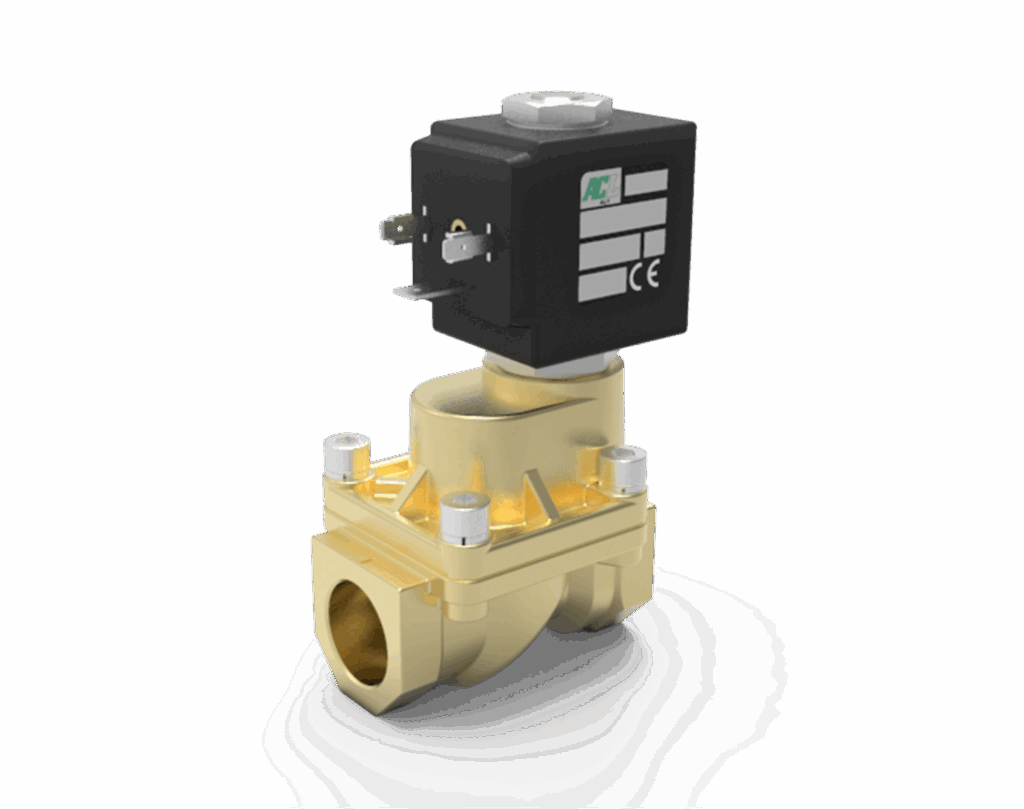

119W
Solenoid valve 2 way normally closed
with servo-assisted piston

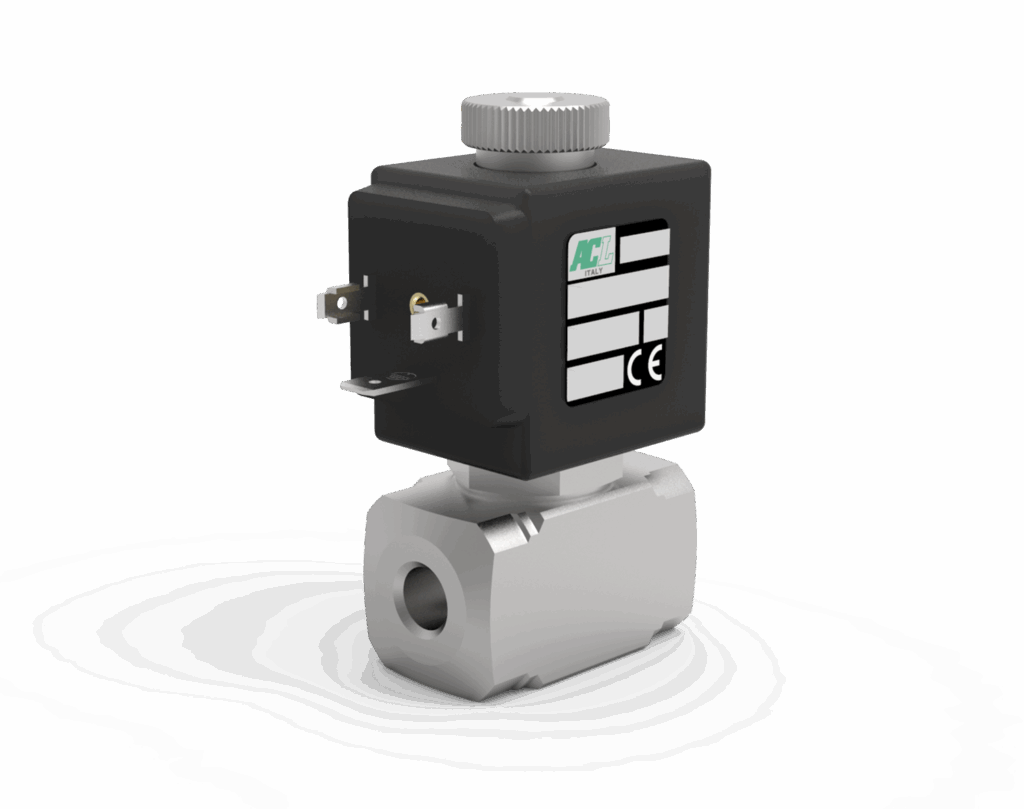

270
Solenoid valve 2 way normally open in stainless steel AISI 316
direct acting poppet type
119
Solenoid valve 2 way normally closed
with servo-assisted piston

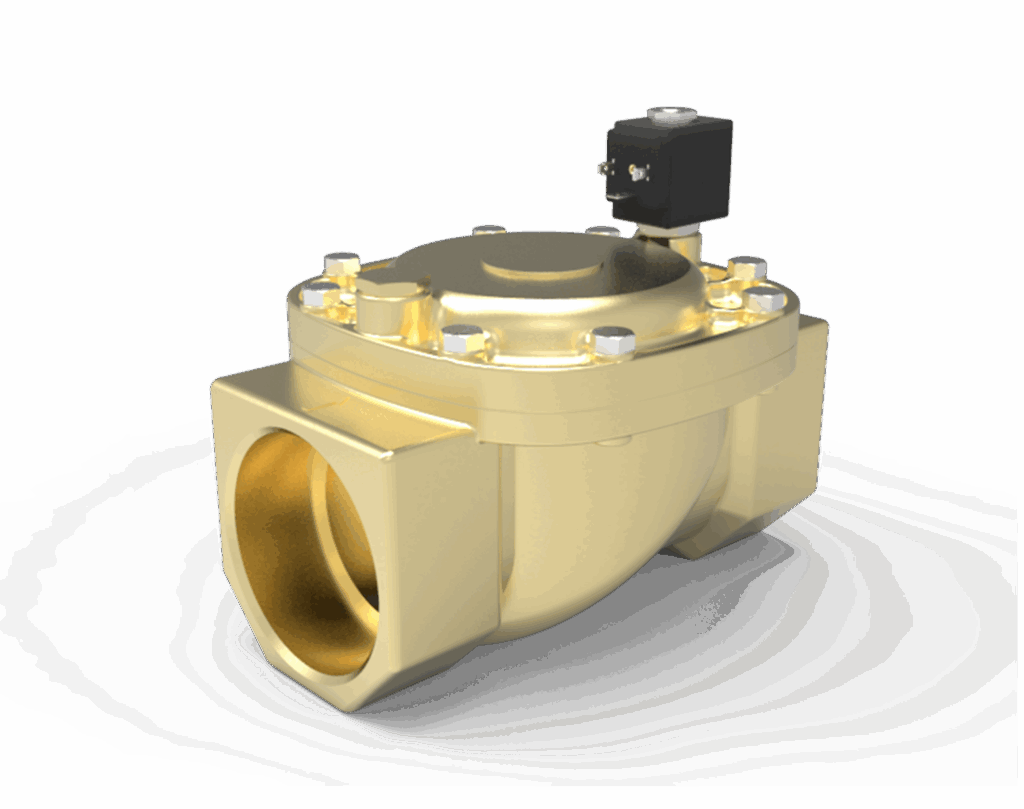

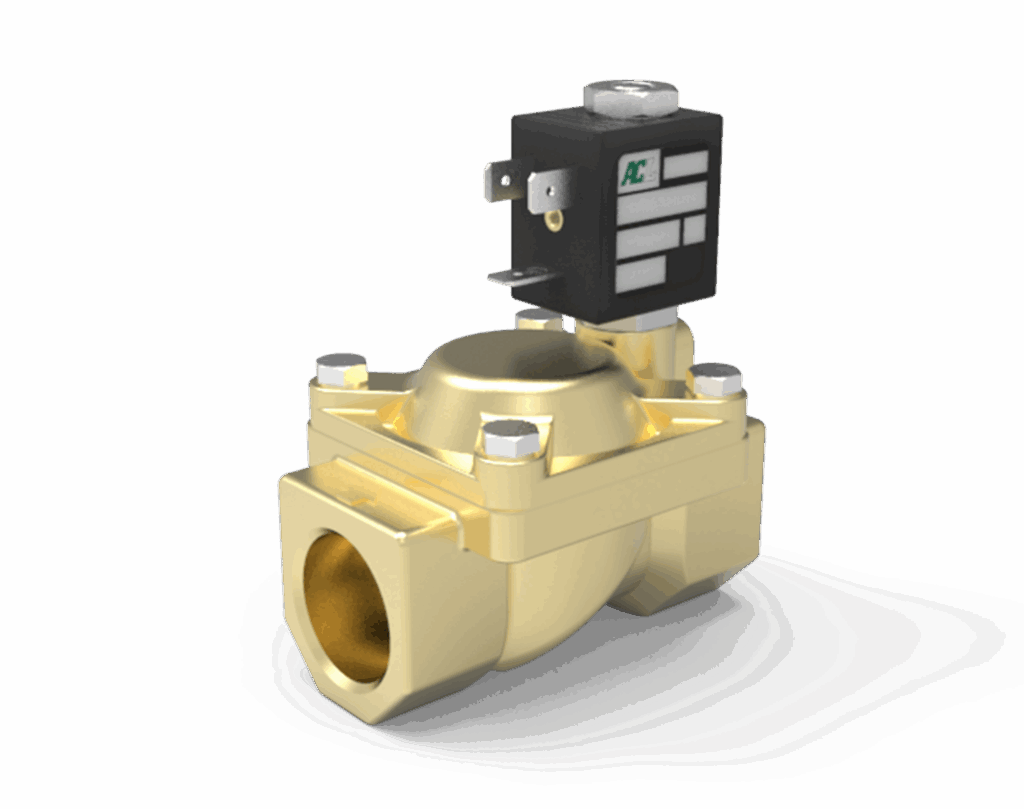

117
Solenoid valve 2 way with servo-assisted
diaphragm bi-stable.
The bi-stable function is achieved by the use of a
polarized permanent magnet energizing the coil
with a DC current for at least 15ms in the reverse
direction of the previous impulse.
235
117 – G1
Solenoid valve 2 way with servo-assisted
diaphragm bi-stable.
The bi-stable function is achieved by the use of a
polarised permanent magnet energising the coil
with a DC current for at least 15ms in the reverse
direction of the preceding impulse.

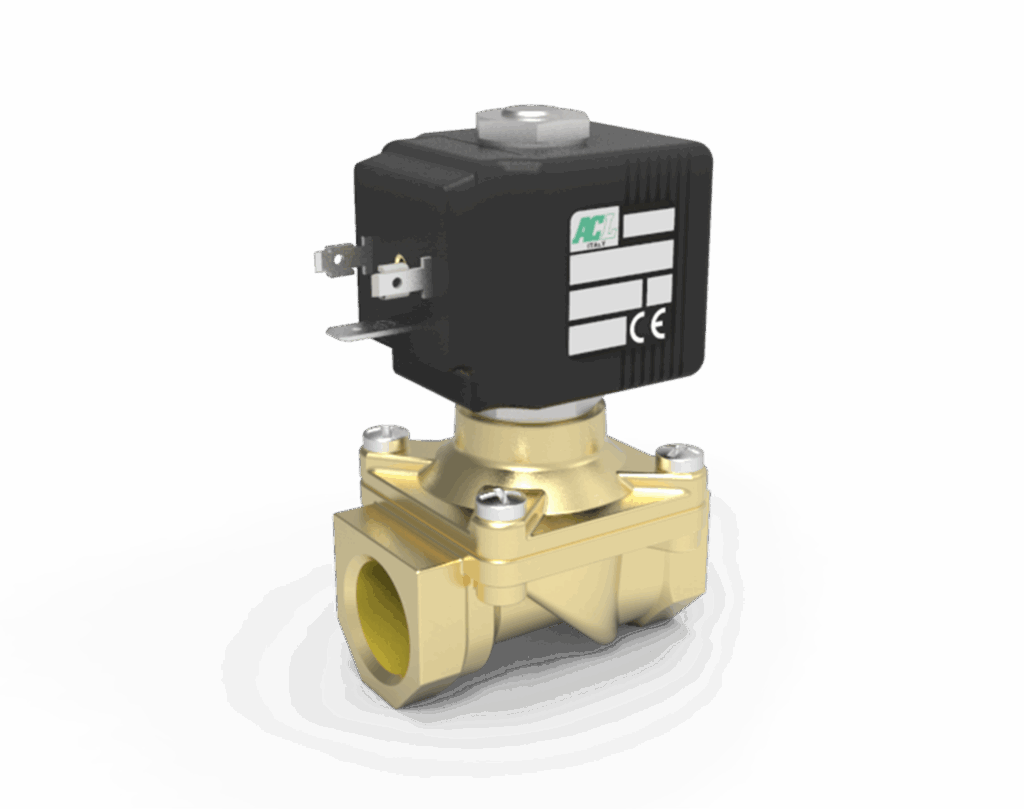

108
Solenoid valve 2 way normally closed
with servo-assisted diaphragm

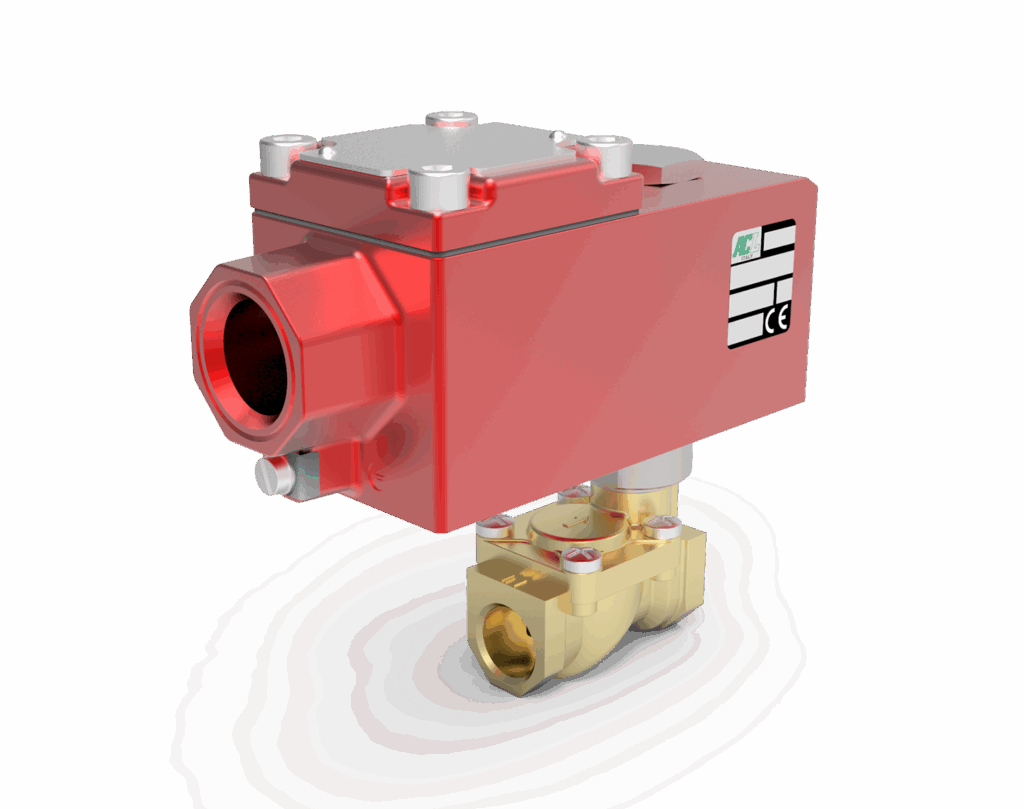

A107
Solenoid valve 2 way normally closed
with servo-assisted diaphragm.
With explosion proof coil certified for hazardous area:
ATEX II 2GD Ex d IIC T6 or T5 or T4 Gb IP66
Ex tb IIIC T85°C or T100°C or T135°C Db IP66
CESI 03 ATEX 344/02
Tamb -40°C ÷ +35°C(T6) or +50°C(T5) or +60°C(T4)
(other certifications e.g.. EAC, IN METRO, CCOE etc. on request)
